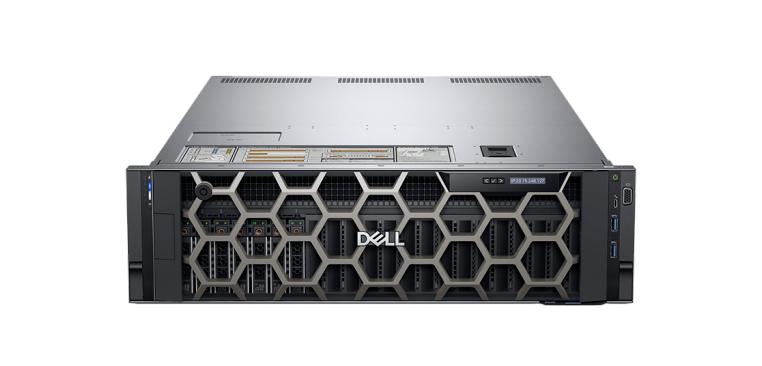

PowerEdge R940 機架式服務器

    詳細說明



    處理器

    多達四個英特爾?至強?可擴展處理器，多達28個核心



    操作系統選項

    Canonical? Ubuntu? LTS Citrix? XenServer?
    Microsoft Windows Server?，帶Hyper-V Red Hat? Enterprise Linux
    SUSE? Linux Enterprise Server VMware? ESXi



    內存i

    48個DDR4 DIMM插槽，支持RDIMM/LRDIMM，速度高達2666 MT/s，最高6 TB
    多達12個NVDIMM，最高384 GB
    僅支持寄存式ECC DDR4 DIMM



    存儲

    Front Bays
    Up to 24 x 2.5” drives with up to 12NVMe PCie SSDs max 184.32TB



    存儲控制器

    Internal Controllers
    PERC H730P, H740P, H330, HBA330

    External Controllers
    12Gbps SAS HBA

    Software RAID
    S140

    Internal Boot
    Boot Optimized Storage Subsystem (BOSS):
    HWRAID 2 x M.2 SSDs 240GB, 480GB

    Internal Dual SD Module


    安全性
    Cryptographically signed firmware
    Secure Boot
    Secure Erase
    Silicon Root of Trust
    System Lockdown (requires OpenManage Enterprise)
    TPM 1.2/2.0, TCM 2.0 optional

    管理

    符合IPMI 2.0標準
    帶生命周期控制器的iDRAC9（Express、Enterprise）Quick Sync 2無線模塊（可選）

    OpenManage軟件：
    企業級OpenManage
    OpenManage Essentials
    OpenManage Mobile
    OpenManage Power Center


    電源
    1100W -48VDC Gold
    1100W Platinum
    1100W 380VDC Platinum
    1600W Platinum
    2000W Platinum
    2400W Platinum
    Hot plug power supplies with full redundancy option
    Up to 8 hot plugs fans with full redundancy
